Stacks in C

May 26, 2017 C STACK DATA STRUCTURE 13731

A stack in computer science is very much similar to the stacks in our day to day life. In a stack, we add or remove any item from the top. In computer science also, we add or remove any node only from the top. We put the newest element on the top of the stack and while removing, we remove this lastly-added element from the top i.e., Last-in, First-out (LIFO). The picture below represents a stack of coins.


Thus, a stack is an abstract data type where new nodes can be added and removed only at the top. There are some terms and operations we use with a stack. Let’s go through them one by one.

The bottom of a stack is represented by NULL.
stack with bottom null
You can see that the bottom of the stack represented in the above picture is NULL.

Two major operations possible on a stack are push and pop. Let’s go through them.

  • push → ‘push’ is a function in a stack which adds a new element in the stack. As a new element is added on the top of the stack, so ‘push’ adds a new node on the top of the stack.

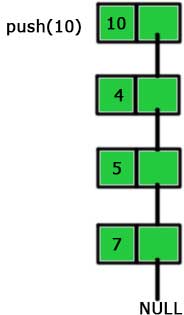

    push operation on stack
    Here, ‘push(10)’ added a new node on the top of the previous stack.
  • pop → ‘pop’ is opposite of push. It returns and removes a node from the top.
    pop in stack
    In the picture shown above, ‘pop’ returned 10 and removed that node from the previous stack.

We also have a pointer which always points at the top of the stack. We call this pointer ‘top’.
top pointer in stack

There are also some other operations which we can use on a stack. They are listed below.

  • initialize() → To initialize a stack
  • top() → To return the topmost element of the stack
  • isempty() → To check whether the stack is empty or not.
  • isfull() → To check whether the stack is full or not.

This article was just about introducing you to the stack. Next two articles are on coding up a stack using linked list and array.
